EX-505 Explosion Proof Brass Pendant Light Return
Model: 505 is explosion-proof
Light fittings, can be used reliably and safely with explosive air mixture, which is IIC, and in the temperature of T4/T3/T2, protection class is IP56.
Light fittings, can be used reliably and safely with explosive air mixture, which is IIC, and in the temperature of T4/T3/T2, protection class is IP56.
Explosion Proof Brass Pendant Light
Model:EX-505

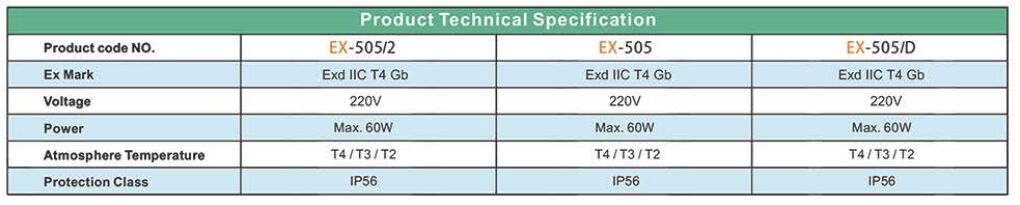

Technical Details:
Model: | EX-505 |
EX Mark: | II 2G EX de IIC T4 Gb IP56 |
Type of Protection: | "d"Flameproof, “e”Increase safety |
Area of Classification(Gases): | Zone 1and 2 Gas Groups IIA,IIB and IIC |
Temp.Classification(Gases): | T4 |
Body: | Brass |
Voltage: | 230V |
Lamp: | Incandescent lamp,Fluorescent lamp,LED(Not included) |
Lamp holder: | E27 |
Watts: | Max 60W |
Type of cable gland: | M 24 x 1.5 |
Cable Gland Type: | -O |
Cable diameter Ø min: | 12 mm |
Cable diameter Ø max: | 14.5 mm |
Product Weights: | 3.38 kg |
Packing: | 6 pieces/carton, size:42*33*36 cm |
